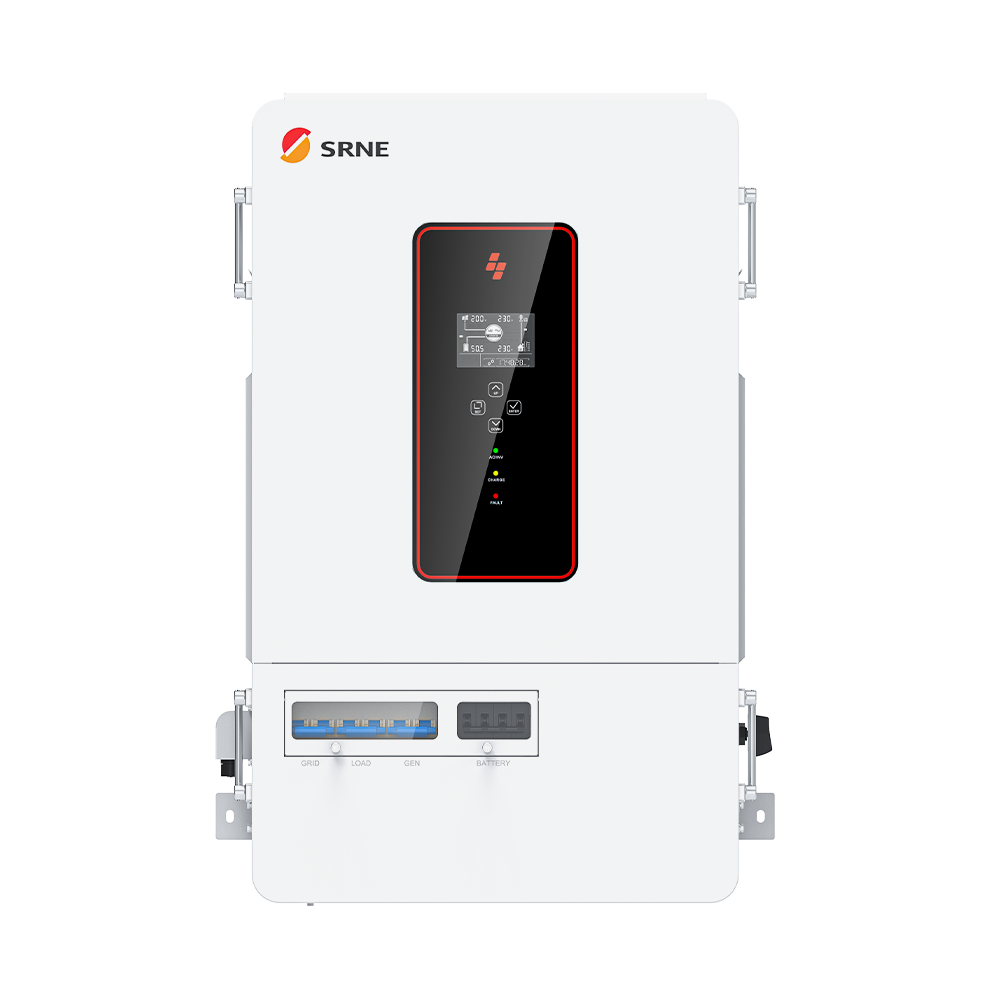

The SRNE ASP 16kW Split-Phase Hybrid Inverter (Model ASP48160U300-H) is a powerful all-in-one solar inverter with integrated DC & AC protection breakers built in — cutting installation cost and wiring. Ideal for larger homes and light-commercial solar systems.
Key Features
- 16 kVA rated power — 120/240V split-phase pure sine wave output
- Up to 24 kW PV input with 2 × MPPT trackers (120–600V)
- Integrated AC & DC protection breakers — cleaner, faster installation
- Works with lithium-ion or lead-acid batteries (48V), up to 300A charge/discharge
- WiFi remote monitoring
- Parallel up to 6 units for larger systems
- Generator input support — works with or without batteries
- Fast 10 ms switchover · ≥94.3% efficiency
Specifications
| Rated Power | 16 kVA |
|---|---|
| Output | 120/240V split-phase · 50/60 Hz · pure sine wave |
| Max PV Input | 24 kW |
| MPPT Trackers | 2 × (120–600V), 36A / 36A |
| Battery | 48V (40–60V) · lithium-ion or lead-acid |
| Max Charge / Discharge | 300A |
| Efficiency | ≥ 94.3% |
| Switchover Time | 10 ms (typical) |
| Protection | Integrated AC & DC breakers |
| Monitoring | WiFi remote |
| Parallel | Up to 6 units |
| Dimensions | 514 × 848.7 × 190 mm |
| Weight | 47.5 kg |
| Ingress Protection | IP20 (indoor) |
Available to order — buy-in on demand. Contact us to purchase.
